ACM FOR SIGNAGE
Applications
- Direct UV& Screen Printing
- Sign Making

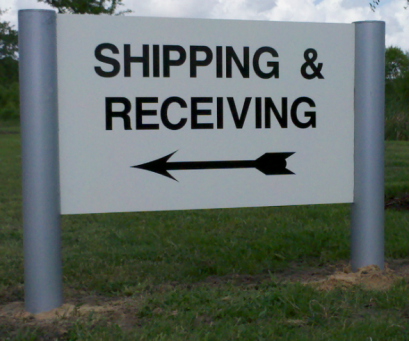

- Wayfinding

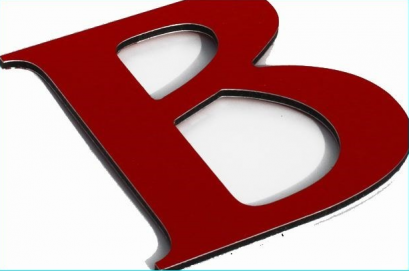

- 3D Lettering
- Hung Signage
- POS Displays
- Vinyl Application
- Corporate ID
- Exhibition Design
- Outdoor Advertising
- Decoration
- Channel Letters
Characteristics
- Excellent for digital printing and mounting
- Extremely flat
- Suitable for outdoor and indoor applications
Panel Properties
Aluminum Skin thickness: .006”, .008”, .012”
Paint: PE, Polyurethane
Width: 39”, 48”, 49”, 60”, 79”
Length: 39” to 236”
Standard Sheet Sizes: 48”x96”, 48”x120”, 60”x120”
Fire Rating: ASTM E84 CLASS B AND CLASS A
Thickness: 2-6 mm
Standard Thickness: 3mm and 6mm

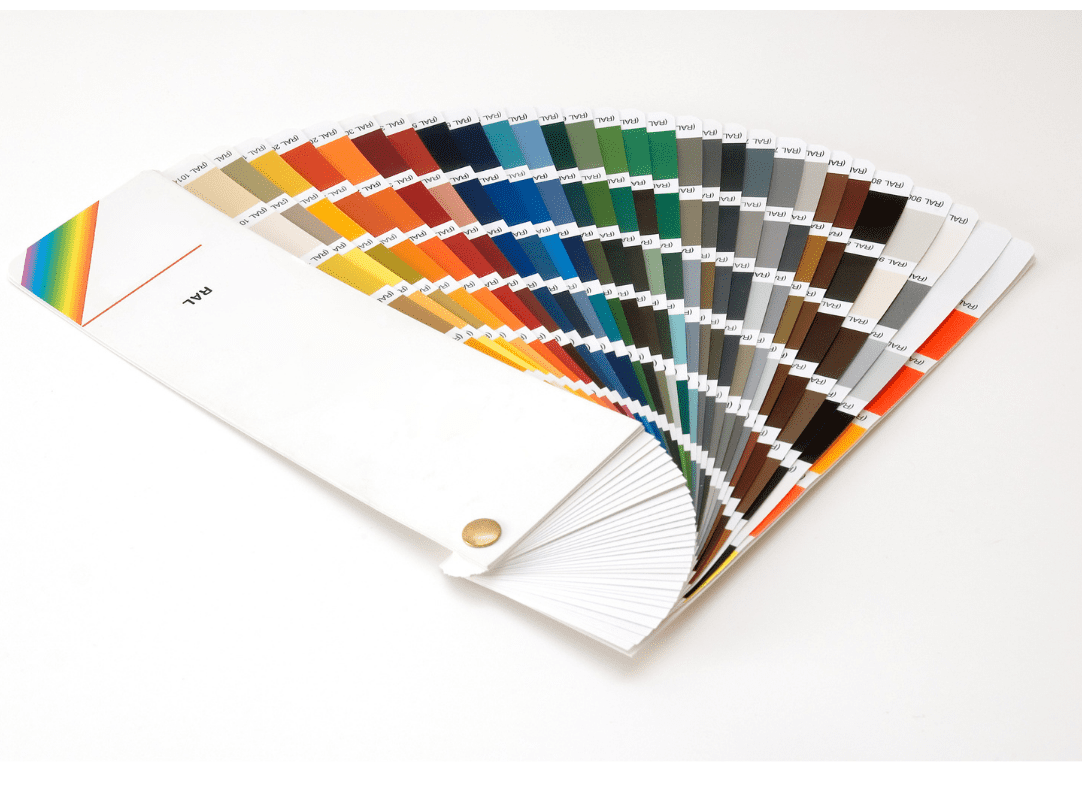

Color: 20+ color options available and custom color availability.
ACM FOR ARCHITECTURAL
Applications

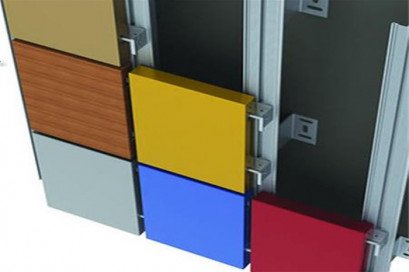

- Architectural Cladding

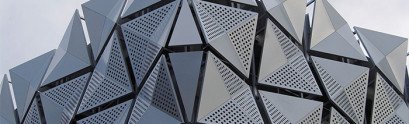

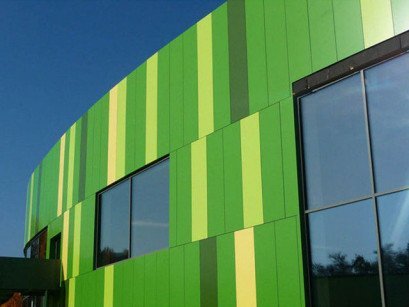

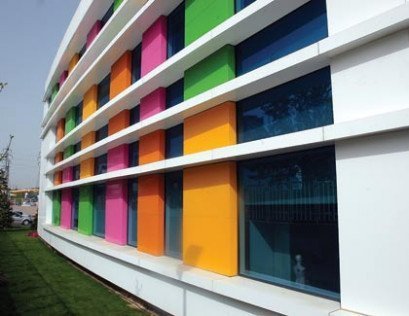

- External Facades
- Shop Fitting
- Outdoor Signage
- Curtain Walling

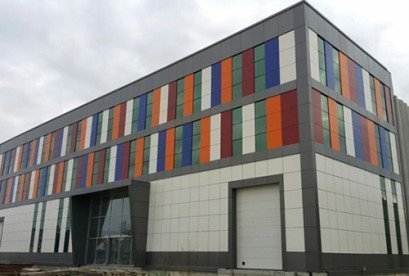

- Wall Cladding
Characteristics
- Extremely durable
- Wide range of colors
- Suitable for fabrication and curving
- Light Weight but rigid.
- FR and PE options.
- Up to 20 years warranty
Panel Properties
Aluminum Skin thickness: .012”,.016”,.020”
Paint: HDP, PVDF 2 Layers, PVDF 3 Layers, PVDF 4 Layers, FEVE
Width: 49”,50”,59”,62”
Length: 39” to 236”
Standard Sheet Sizes: Please ask
Fire Rating: ASTM E84 CLASS B AND CLASS A
Thickness: 2-6 mm
Standard Thickness: 4mm and 6mm
Color: 40+ color options available and custom color availability.
